LNEYA brand of industrial temperature control machine for all kind of reactor from -10-200 degress

FOB Price:

US 1,000-100,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

T/T

Brand:

LNEYA

Products Model:

SUNDI-1A38W

Products Details
Company Profile

Quick Details

Brand Name: LNEYA

Model Number: SUNDI-1A38W

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Standard wooden package
Delivery Detail: Shipped in 25 days after payment

Specifications

SUNDI-1A38W Water-cooled type temperature control system for industrial reactor

Technical Parameters:

Model		SUNDI-1A25W	SUNDI-1A38W	SUNDI-1A60W	SUNDI-1A95W	SUNDI-1A130W
Temperature range ℃		-10℃~200℃
Controller		Feed forward PID +Our special dynamic control calculation, PLC controller
Temp. control		Option: process temperature control or jacket oil temperature control
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		20 programs, each program can edit 45 steps.
Communication		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium feedback PT100, (oil outlet temperature, oil inlet temperature and heater temperature), Three temperature measuring points.
Process Temperature feedback		Raw material process feedback PT100 or 4~20mA input (optional)
Temp. accuracy		±1℃	±1℃	±1℃	±1℃	±1℃
Cooling capacity	200℃	25kW	38kW	60kW	95kW	130kW
	0℃	25kW	38kW	60kW	95kW	130kW
	-5℃	15kW	22.8kW	36kW	57kW	78kW
Circulation pump		Max150L/min 2.5BAR	Max250L/min 2.5BAR	Max250L/min 2.5BAR	Max250L/min 2.5BAR	Max400L/min 2.5BAR
Compressor		Copeland	Copeland	Copeland	Copeland	Copeland
Evaporator		Shell and-tube evaporator
Expansion valve		Emerson
Operation panel		Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Refrigerant		R-410A
Connection size		DN25 PN10	DN32 PN10	DN40 PN10	DN40 PN10	DN40 PN10
Water-cooled type W (cooling water at 30℃)		8m³/h 1.5bar~4bar	10m³/h 1.5bar~4bar	15m³/h 1.5bar~4bar	20m³/h 1.5bar~4bar	28m³/h 1.5bar~4bar
Dimension		7008001650	10009501650	18008001650	200010001650	230012501750
Weight		640kg	900kg	1150kg	1400kg	1700kg
Power		AC 380V 50HZ 32kW (max)	AC 380V 50HZ 48kW (max)	AC 380V 50HZ 75kW (max)	AC 380V 50HZ 125kW (max)	AC 380V 50HZ 155kW (max)
Case material		SUS 304	SUS 304	SUS 304	SUS 304	SUS 304
Optional		Optional Ethernet interface, configure the computer operating software
Optional power		440V~480V 60HZ three-phase source

Product Description

Product Discription:

1.Refrigerated Heating Circulator with water-cooled or fans-cooled cooling machine .

2.level glass indicator.

3.Circulation magnetic pump made of stainless steel with cooled shaft seal with free shaft, without bearing in the liquid. Optional pump pressure control via controlled bypass.

4.Auto switchover and capacity adaption for heating and cooling machine.

5.Cooling machine can be running in 250 degrees

6.Copper soldered evaporator, moistened parts and housing made of stainless steel.

As well as for externally closed and also externally open applications.

7.Microprocessor controlled, with integrated programmer, external sensor .

8.Self-optimizing adaptive dynamic control color TFT touchscreen, simple operation.

9.Dynamic Temperature Control systems combine the efficiencies of effective

thermodynamics and modern microelectronics making it a highly efficient alternative to open bath temperature control technology.

10.Dynamic Temperature Control system is close system. An expansion vessel for thermal expansion and contraction replaces the conventional bath.

The expansion vessel is isolated from the thermoregulation unlike open baths.

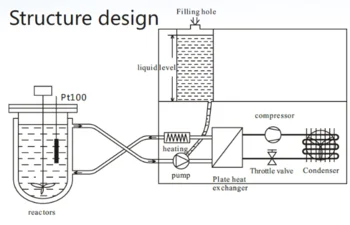

Structure design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃. Therefore, during the process the risk of imbibing and volatilization ofthe heat conducting medium is reduced. There following advantages for the user.

Only the heat conduction medium in the expansion container touches the oxygen in the air.

(The container temperature is limited to 60℃).

No volatilization of the heat conducting medium at high temperature.

No need to change the heat conducting medium. Continuous control of the temperature of the below

range can be done without rising the pressure: -80℃~190℃, -70℃~220℃, -88℃~170℃, -55℃~250℃,

-30℃~300℃.

1. Displays all the kind of process control temperatures.

2. Shows the liquid level of the heat conducting medium in the expansion vessel.

3. Shows indication for refrigeration system working.

4. Shows indication for heater working.

Wuxi Guanya Refrigeration Technology Co., Ltd. Specialized in rerfigeration equipment, ultra-low temperature freezer, cooling and heating temperature control system, heating circulation system, explosion-proof electric equipment. Automatic integrated disparate control system, laboratory apparatus. We are the technology leader for high precision thermoregulation solutions in Research and Development Industry. Our products ensure precise temperature control throughout the whole world in laboratories, pilot plants and production processes. Our product range offers temperature control solutions for applications from minus 152 to 350 degree.
